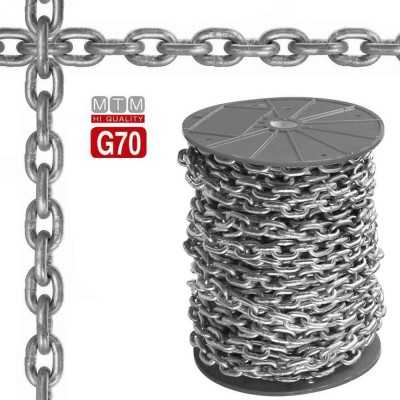

DIN766 G70 Galvanised steel calibrated chain 8mm 75m for winches MT011070875
High resistance G70 DIN 766 Hot dip galvanised steel calibrated chain for anchor windlasses, Ø8mm 75mt, 24x10mm pitch, breaking load 6800kg, 108,75kg.
DIN766 G70 Galvanized Steel Calibrated Chain Ø8mm 75m
High-strength G70 calibrated chain made of premium-quality hot-dip galvanized steel, compliant with DIN 766, manufactured to withstand forces of up to 70 kg per mm2, with capacities comparable to lifting chains. Controlled production with guaranteed minimum breaking load. Ideal for anchor winches.
ADVANTAGES
• Tensile and tear strength with loads up to 100% higher than a traditional chain. High rated load capacity, greater mechanical steel properties.
• Reduces the volume of space required, avoiding twisting of the chain.
• A lower weight on board, giving the boat better performance and safety, with lower consumption.
• Guarantees a reduced, lighter and lower cost windlass..
FEATURES
Chain link diameter (D): 8 mm.
Chain link pitch (L): 24 mm.
Chain link width (W): 10 mm.
Declared breaking load: 6800 kg.
Workload: 1400 kg.
Weight: 1.45 kg/m.
Pack: 75 meters.
