Vitrifrigo MACS 12000 Air conditioning systems 230V 50Hz VTMACS12000

Vitrifrigo MACS 12000 Air conditioning systems

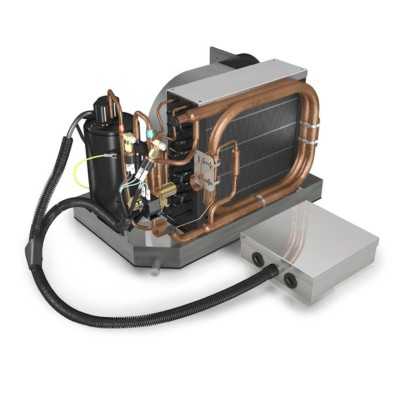

Monoblock air conditioning unit for air conditioning system in cooling mode 12000 BTU/h and in heating mode 13000 BTU/h. Suitable for cooling single or multiple cabins. The new self-contained system (compressor, sea water condenser, evaporator and fan) and the new cooling circuit is ideal for all seasons. The compact unit is especially suitable for onboard installations, allowing airflow through insulated ducting and into the conditioned space through air distribution grilles. With control panel included.

Technical features:
Code: 0700-0002;
Power supply: 230V/50Hz;
Nominal cooling capacity: 12000 BTU/h;
Nominal heating capacity: 13000 BTU/h;
Rated power consumption (cooling mode): 0.9 kW;
Rated power consumption (heating mode): 1.1 kW;
Nominal absorption in cooling mode: 4 A;
Nominal absorption in heating mode: 4.7 A;
Treated air flow: 540 mc/h;
Recommended pump capacity: 900 l/h;
Width: 520 mm;
Height: 330 mm;
Depth: 321 mm;
Air outlet diameter: 152 mm;
Condensate drain pipe diameter: 18 mm;
Electrical panel dimensions: 245x188x64 mm;
Net weight: 26 kg.

This item will be shipped within approximately 10-15 days from date of order, August and December excluded.
