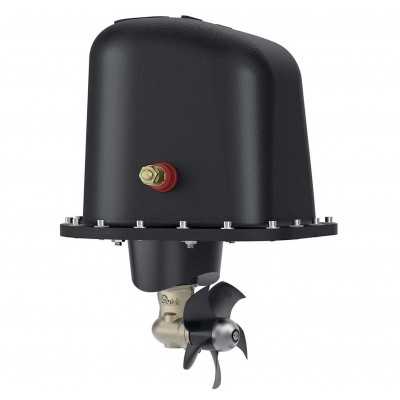

Quick BTQ 125-40C Single Propeller DC Bow Thruster 12V 2200W 40kgf
Quick BTQ 125-40C single propeller DC bow thruster 12V with protection case IP67, 2200W motor power, 40kgf thruser, 287x125x84mm, 13.3kg, ideal for recommended 7-10m (23-33 ft) boats.
Please note: this item is made to order and will take about 20 business days to be prepared and shipped.
Quick BTQ 125-40C Single Propeller DC Bow Thruster 12V 2200W 40kgf
The Quick BTQ 125-40C bow thruster is a compact, powerful, and reliable solution for small to medium-sized boats.
Designed to ensure safe and precise maneuvering even in tight spaces, it is built with high-quality materials that guarantee strength, efficiency, and long-lasting performance. An ideal device to handle even the most demanding marine conditions with confidence.
Key Features
Single propeller in high-strength composite material.
Recommended for boats from 7 to 10 m (23 – 33 ft).
Bronze gearbox with hardened and ground bevel gears for maximum efficiency.
Standard zinc anode, independent from the gearbox and easily replaceable.
Quick elastic coupling: optimizes alignment between motor and gearbox, reduces vibrations, and protects the system.
Protective casing for contactors in robust, corrosion-resistant composite material.
Performance & Reliability
Gearbox designed to ensure the same performance of the propeller in both directions.
Minimal maintenance: high-strength components ensure lifetime oil seal integrity.
Hydrodynamic bronze leg profile designed to minimize turbulence and increase efficiency.
4-blade composite propeller, secured with stainless steel self-locking nuts: maximum thrust with reduced power consumption.
Electrical connections equipped with quick, safe, and practical connectors.
Motor & Safety
Motor built with next-generation materials to deliver consistent performance even under demanding conditions.
Overheating protection ensured by an integrated microprocessor.
Support flange in hard-anodized aluminum for superior corrosion resistance and long service life.
Technical data:
Model: BTQ 125-40C;
Propulsion system: Single propeller;
Ø Tunnel: 125 mm;
Voltage: 12 V;
Motor power: 2.2 kW;
Thrust: 40 Kgf;
Boat length*: 7-10 m;
Weight: 13.3 kg;
Dimensions: A= 287 mm, B= 125 mm, C= 84 mm.
(*) ATTENTION: Indications may vary according to the boat type.
