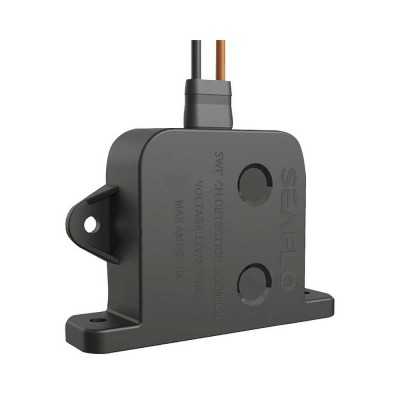

SuperFlow 12/24V 20A ON/OFF electronic switch for bilge pumps OS1661001
Universal SuperFlow automatic electronic switch, compatible with all 12/24V submersible bilge pumps; 20 A at 12 V / 10 A at 24 V; 92x22x63 mm.
SuperFlow automatic electronic bilge pump switch
Universal SuperFlow automatic electronic switch, compatible with all 12/24V submersible bilge pumps.
The device automatically activates the pump when the water level reaches 41 mm and deactivates it when the level drops to 9.5 mm.
A 3-second delay prevents accidental activation caused by temporary water movement. It can be installed either horizontally or vertically, offering great mounting flexibility.
Technical specifications
Power supply: 12/24 V
Max. current: 20 A at 12 V / 10 A at 24 V
Activation level (ON): 41 mm
Deactivation level (OFF): 9.5 mm
Activation delay: 3 seconds
Installation: horizontal or vertical
Dimensions: 92 × 22 × H 63 mm
Compatible with submersible bilge pumps
