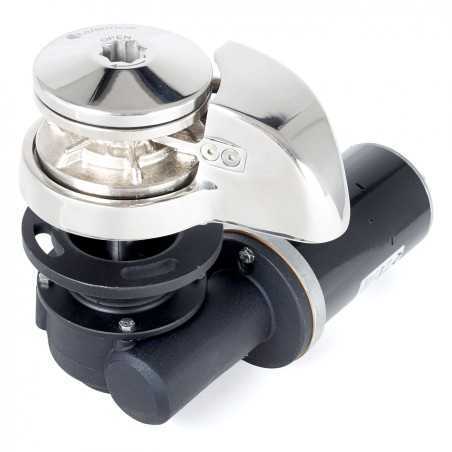

Italwinch CLS Vertical Windlass 12V 1000W Stainless Steel 8mm Chain

Italwinch CLS Vertical Windlass 12V 1000W Stainless Steel 8mm Chain.

Stainless steel vertical windlass. Available in low profile, with different drives and recommended for boats up to 13 mt. SMART use the 6mm chain and is equipped with rope tensioner. Comes with built-in chain counter sensor. Without Drum.

The CL line represents Italwinch's range of windlasses made entirely of AISI 316 stainless steel, a material that guarantees high resistance to marine corrosion and long life even under the most demanding conditions. These products are designed to combine reliability, efficiency, and design, offering a robust and functional accessory for any type of vessel.

The CLS line stands out for its versatility, available in both a low-profile version, which reduces deck space and ensures a more streamlined look, and a high-profile version, ideal for those seeking a more traditional installation. Each model can be equipped with different motorizations, allowing for a better adaptation to the needs of the boater and the characteristics of the vessel. The CLS range is recommended for boats up to 13 meters in length, covering a very popular segment in the recreational boating sector.

The CLS windlass is designed to use chains up to 8 mm and features a practical tensioning system that keeps the rope perfectly taut, improving anchor management and onboard safety. Furthermore, to facilitate anchor lowering and retrieving, the device comes standard with an integrated chain counter sensor, allowing real-time monitoring of the length of the chain or rope deployed.

Specifications:
Electric motor: 1000W
Motor supply voltage: 12V
Maximum lift load: 300 Kg
Lift working load: 130 Kg
line speed: 26 mt/min
Current absorption: 115 A
Weight (without drum): 13 Kg
Chain: 6mm
Dimensions (like in immage)

Chain:
Gipsy: 8mm
Supported chain: 8 mm DIN766
Supported rope: 12 mm-1/2"
