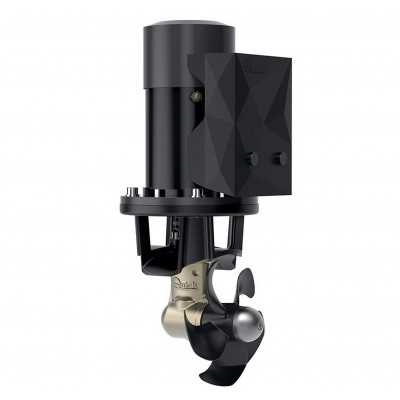

Quick BTQ 185-75 12V Single Propeller DC Thruster Bow/Stern 4kW 75kgf

Quick BTQ 185-75 12V Single Propeller DC Thruster Bow/Stern 4000W 75kgf

Quick BTQ 185-75 12V Single DC Thruster, suitable for both bow and stern installations.
It delivers 3000 W motor power with a thrust of 55 kgf, ensuring reliable performance and precise maneuvering.
Supplied without a cowling, it features compact dimensions (329 x 185 x 123 mm) and a weight of only 17 kg, making it ideal for installation on boats from 10 to 13 meters.
Designed to provide safe and accurate maneuvers even in tight spaces, it is built with high-quality materials that guarantee strength, efficiency, and long service life. An ideal device to handle even the most demanding marine conditions with confidence.

Key Features
Single propeller in high-strength composite material.
Recommended for boats from 10 to 13 m (33 – 43 ft).
Bronze gearbox with hardened and ground bevel gears for maximum efficiency.
Standard Aluminum anode, independent from the gearbox and easily replaceable.
Quick elastic coupling: optimizes alignment between motor and gearbox, reduces vibrations, and protects the system.

Performance & Reliability
Gearbox designed to ensure the same performance of the propeller in both directions.
Minimal maintenance: high-strength components ensure lifetime oil seal integrity.
Hydrodynamic bronze leg profile designed to minimize turbulence and increase efficiency.
4-blade composite propeller, secured with stainless steel self-locking nuts: maximum thrust with reduced power consumption.
Electrical connections equipped with quick, safe, and practical connectors.

Motor & Safety
Motor built with next-generation materials to deliver consistent performance even under demanding conditions.
Overheating protection ensured by an integrated microprocessor.
Support flange in hard-anodized aluminum for superior corrosion resistance and long service life.

Technical data:
Model: BTQ 185-75;
Propulsion system: Single propeller;
Ø Tunnel: 185 mm;
Voltage: 12 V;
Motor power: 4 kW;
Thrust: 75 Kgf;
Boat length*: 10-13 m;
Weight: 17 kg;
Dimensions: A= 329 mm, B= 185 mm, C= 123 mm.

(*): Indications may vary according to the boat type.

⚠️ Attention:
This item is assembled directly by the manufacturer at the time of order. Delivery takes approximately 10–15 working days; during July, August, and December, slight delays may occur. We will always keep you updated on the status of your order.
