Quick Totem Capstan 500W 12V QTM600G
zoom_out_map
chevron_left chevron_right
-25%

Quick Totem Capstan 500W 12V QTM600G

Quick Totem Capstan 500W 12V

€1,556.42 VAT included

€1,275.75 VAT excluded

€2,075.22-25%

Shipping from Italy or Europe warehouse in 4-8 working days unless otherwise specified in the product description

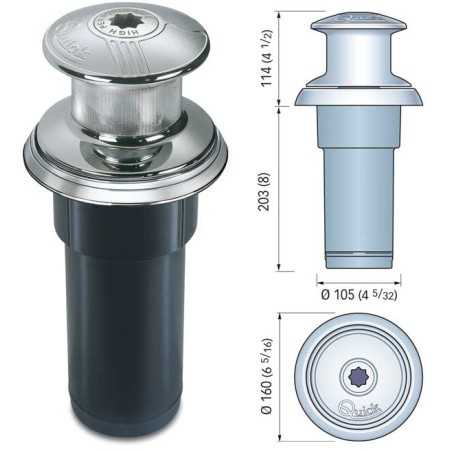

Quick Totem Capstan 500W 12V. The capstan is generally used for mooring and manoeuvring activities (dock line handling). This capstan is in chromed-plated bronze, vertical motor to facilitate installation. High efficiency of the epicyclical gearbox, allowing higher motor performance.
For boats from 8 to 12 metres.

Technical features:
- Motor power: 500W;
- Motor supply voltage: 12V;
- Maximum pull: 620 kg;
- Maximum working load: 200 kg;
- Working load:  65 kg;
- Current absorbtion @ working load (1): 60A;
- Maximum chain speed (2): 22,5 m/min;
- Maximum chain speed @ working load (2): 10,3 m/min;
- Drum diameter: 80 mm;
- Weight: 8,1 kg.

Solenoid included.

Quick
QTM600G
8025223008406
