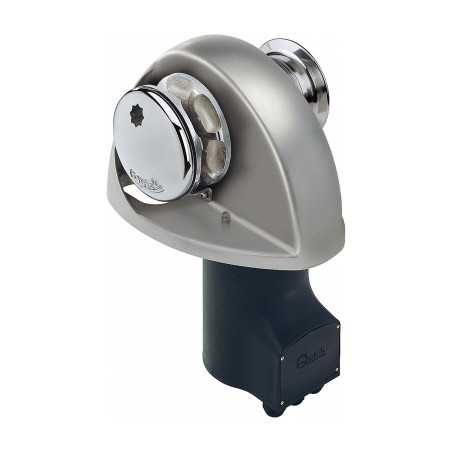

Quick Eagle E3 1000W 24V Windlass Stainless Steel with Gypsy and Drum Ø130mm QE31024D
Quick Eagle E3 1000W 24V horizontal windlass in anodized aluminum in hard oxide with Gypsy and Drum Ø130mm for 6-10mm chain, for 7-15m (23 - 49 ft) boats.
Note: Windlasses will be available in 15/20 days from order.
Quick Eagle E3 1000W 24V horizontal windlass with Gypsy and Drum Ø130mm
Windlass makes boating more enjoyable by reducing the effort required to lift and lower heavy ground tackle making anchoring faster, easier and most importantly, safer. Smart and refined, small dimensions, the horizontal windlass Quick is a good solution for those customers who like horizontal shaft without compromising on quality. The EAGLE model is provided with a casing which ensures that the engines are completely watertight IP67. The vertical motor allows for extremely simple and quick installation.
Features:
Motor power: 1000 W;
Motor voltage: 24 V;
Maximum pull: 1250 Kg;
Maximum working load: 490 Kg;
Work load: 160 Kg;
Current absorption at workload (1): 80 A;
Maximum recovery speed (2): 47.8 m/min;
Recovery speed at workload (2): 20.9 m/min
Gypsy and Drum: Ø 130 mm;
Weight: 23.5 Kg.
1) After an initial period of use.
2) Measurements made with gypsy for 8 mm chain.
Gypsy:
- 6 mm: 6 mm DIN 766/ISO chain;
- 8 mm - 5/16": 8 mmDIN 766/ISO - 5/16" G4/BBB chain;
- 10 mm - 3/8": 10 mm ISO (P.30) - 3/8" G4 chain.
The box contains only the contactor; switches and push buttons are sold separately.
A circuit breaker is recommended.
