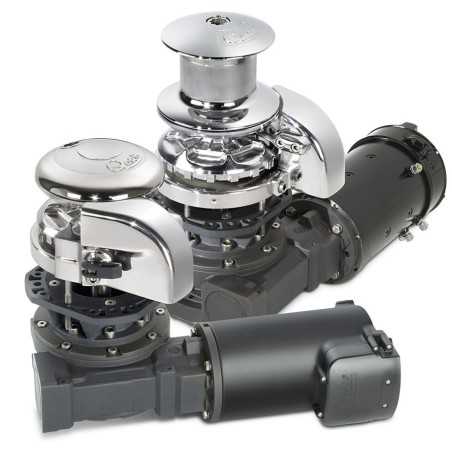

Quick REGAL DC RG5 2324X 2300W 24V Windlass Stainless Steel with Right Pipe Chain QRG52324X

Quick REGAL DC RG5 2324X 2300W 24V vertical windlass in AISI 316 stainless steel with right pipe chain - without Drum

NB: When placing your order please specify in the notes field whether you require a 10, 12-13 or 14mm gypsy.

Quick REGAL DC RG5 2324X 2300W 24V vertical windlass in AISI 316 stainless steel with a remote control box and right pipe chain for boats from 20 to 24 meters (69 - 79 ft).

Key Features
• Vertical windlass.
• Base in stainless steel AISI316.
• Without drum.
• Right pipe chain.
• Including remote control box.
• Integrated sensor and magnet for chain counter.
• Manual Free-Fall system.
• IP66 motor watertight.
• Anodized aluminium gearbox.

Technical data:
Model: REGAL DC RG5 2324X;
Motor power: 2300W;
Motor supply voltage: 24V;
Maximum pull: 2400 Kg;
Maximum working load: 850 Kg;
Working load: 285 Kg;
Current absorption at working load (1): 120 A;
Maximum chain speed (2): 41,2 m/min;
Maximum chain speed at working load (2): 22,3 m/min;
Weight: 48,7 Kg;
Deck thickness: 40 ÷ 80 mm (1 "" 5/16 ÷ 5 "" 5/32).

1) After an initial period of use.
2) Measurements taken with a gypsy for a 12/13 mm chain.

NOTA:
This item is assembled directly by the manufacturer at the time of order. Delivery takes approximately 10–15 working days; during July, August, and December, slight delays may occur. We will always keep you updated on the status of your order.
