Ultraflex Kit GOTECH-I Hydraulic Steering System For Inboard Engines up to 115hp UT42824M

Ultraflex Kit GOTECH-I Hydraulic Steering System For Inboard Engines up to 115hp

GOTECH™-I WHEEL TURNS 3,8.

For inboard single engine up to 115 hp.

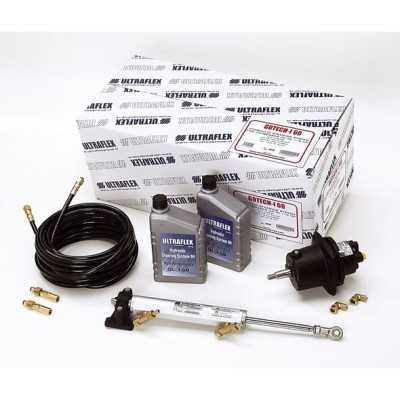

GoTech™-I package kit contains:
UP18: Intermediate helm pump
UC69-I: Side mount inboard cylinder
OL 150: Hydraulic oil - 2 litres
KIT OB-GT/M: Hose kit diameter, 1/4" 6 m (19.7") length

The wheel is not included.

SPECIFICATIONS  UC69-I
Volume: 69 cc - 4.2 cu.in
Torque: 32 kgm - 2783 lbs.in
Output force: 168 kg - 371 lbs
Inside diameter: 25 mm - 0.98”
Stroke: 150 mm - 5.9”
3/8” (9,5 mm) Fittings: For high pressure flex hose

UC69-I - Balanced: the number of turns lock-to-lock is equal port to starboard or vice-versa.
