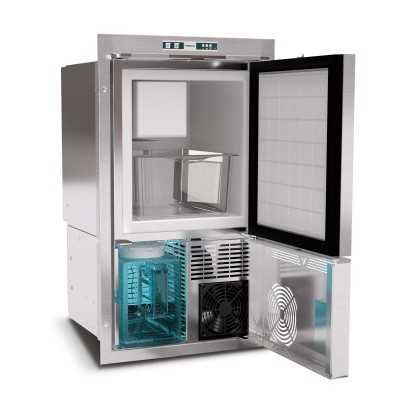

Vitrifrigo IM CL OCX2 REFILL 24L Stainless Steel Icemaker 8kg/24h VT11000007
IM XT INT OCX2 REFILL ice maker in AISI 316 stainless steel up to 8kg of ice in 24 hours with 7lt water tank, equipped with internal refrigeration unit, 416x433xh702mm, 23kg.
Vitrifrigo IM CL OCX2 REFILL 24L Stainless Steel Icemaker 8kg/24h
The IM CL OCX2 REFILL ice maker, made of AISI 316 stainless steel and with materials specifically selected to ensure high corrosion resistance, guarantees long-lasting durability even in particularly exposed environments and can produce up to 8 kg of ice in 24 hours.
This model is equipped with an internal refrigeration unit and features a compressor using R134a gas.
Main features
• Positive snap door closure, designed to prevent accidental openings.
• Single mounting profile, allowing built-in installation in two configurations: Door Outside (partial built-in) or Door Inside (fully flush installation).
• “Vent Position” system integrated into the handle, allowing the door to remain slightly open during periods of non-use, preventing the formation of mold and unpleasant odors inside.
The door position (flush or external) is obtained by simply sliding the single stainless steel mounting profile, supplied as standard and equipped with slots to improve air circulation and cooling efficiency.
The “Refill” version is equipped with a dedicated tray for mineral water, making ice production simple and practical.
The tray has been designed to facilitate removal, filling and cleaning operations and features:
Quick connection for the water hose, 100 mm diameter cap for easier filling, double level indicator (7 liters / 1.8 gallons) and electronic water level sensor.
The waterproof electronic LED thermostat integrates several operating functions:
ON/OFF button for ice production, freezer mode with 3 temperature settings down to -18°C, and electronic water level sensor.
Optional available
• UV-C LED Disinfection System
Sanitization system using UV-C LED technology that helps purify the water from bacteria, improving the quality of the produced ice.
Technical data:
Door Finish: Stainless Steel
Door Color: Stainless Steel
Total Capacity: 24 Liters
Ice Production: Up to: 8 kg/24h
Height: 702 mm
Width: 416 mm
Depth: 433 mm
Weight: 23 kg
Series: ICEMAKER
Reversible Door: Yes
Thermostat: Electronic LED
Refrigeration Technology: Compressor
Motor Unit: Internal
Door Opening: Single Door Front
Power Supply: 220-240V/50Hz
