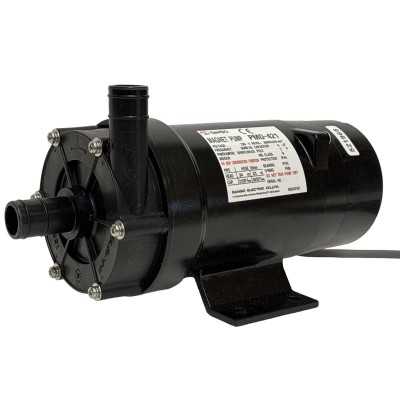

Vitrifrigo Sanso PMD421 Magnetic Drive Seawater Pump 230Vac 1PH 50Hz VTWPPMD421

Vitrifrigo Sanso PMD421 Magnetic Drive Seawater Pump

The Vitrifrigo Sanso PMD421 Magnetic Drive Seawater Pump is designed to provide reliable seawater circulation for Vitrifrigo MACS marine air conditioning and refrigeration systems. Thanks to its magnetic drive technology, the pump delivers quiet, efficient, and dependable operation while minimizing mechanical wear and maintenance requirements.
With a maximum flow rate of 2,220 L/h, the PMD421 ensures a continuous supply of seawater to the heat exchanger, helping maintain optimal cooling performance. Its robust construction and corrosion-resistant design make it ideal for long-term use in demanding marine environments.

Key Features
Magnetic drive seawater circulation pump
Designed for Vitrifrigo MACS marine air conditioning systems
Quiet and reliable operation
Low maintenance with reduced mechanical wear
Corrosion-resistant construction for marine environments
Easy installation
Powered by 230 V / 1 Ph / 50 Hz

Technical Specifications
Model: WPPMD421.230/50
Maximum Flow Rate: 2,220 L/h
Input Current: 0.38 A
Water Inlet: 20 mm
Water Outlet: 20 mm
Height: 130 mm
Width: 240 mm
Depth: 120 mm
Weight: 3.4 kg
Series: MACS
Reversible Door: No
Power Supply: 230 V / 1 Ph / 50 Hz
