Quick KBTQ 125-40 K4 12V 2200W 40kgf Thruster Kit with Push Button Control TNL1000mm

Please note: this item is made to order and will take about 20 business days to be prepared and shipped.

Quick KBTQ 125-40 K4 12V 2200W 40kgf Thruster Kit with Push Button Control TNL1000mm

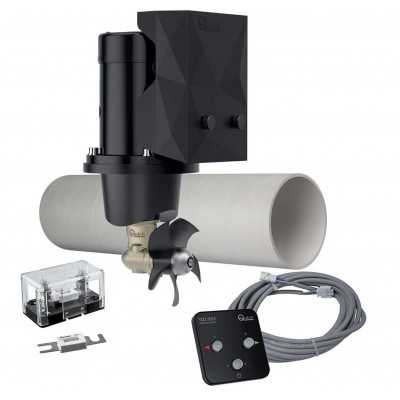

The Quick KBTQ 125-40 K4 complete kit provides everything needed for a practical and reliable bow thruster installation.
It includes the Quick KBTQ 125-40 K4 DC thruster 12V – 2200W – 40 kgf thrust, a TCD2022 push button propeller control, a fiberglass tunnel Ø125 mm, length 1000 mm, a 6 m TCD/TMS/TSC control extension cable, plus fuse and fuse holder.
A compact, high-performance, and durable solution, ideal for small to medium-sized boats, designed to ensure maximum precision and safety during maneuvers.

Quick BTQ 125-40 DC Thruster 12V 2200W 40kgf
The Quick BTQ 125-40 thruster is a compact, powerful, and reliable solution for small to medium-sized boats.
Designed to ensure safe and precise maneuvering even in tight spaces, it is built with high-quality materials that guarantee strength, efficiency, and long-lasting performance. An ideal device to handle even the most demanding marine conditions with confidence.
Key Features
Single propeller in high-strength composite material.
Recommended for boats from 7 to 10 m (23 – 33 ft).
Bronze gearbox with hardened and ground bevel gears for maximum efficiency.
Standard zinc anode, independent from the gearbox and easily replaceable.
Quick elastic coupling: optimizes alignment between motor and gearbox, reduces vibrations, and protects the system.
Performance & Reliability
Gearbox designed to ensure the same performance of the propeller in both directions.
Minimal maintenance: high-strength components ensure lifetime oil seal integrity.
Hydrodynamic bronze leg profile designed to minimize turbulence and increase efficiency.
4-blade composite propeller, secured with stainless steel self-locking nuts: maximum thrust with reduced power consumption.
Electrical connections equipped with quick, safe, and practical connectors.
Motor & Safety
Motor built with next-generation materials to deliver consistent performance even under demanding conditions.
Overheating protection ensured by an integrated microprocessor.
Support flange in hard-anodized aluminum for superior corrosion resistance and long service life.

Technical data:
Model: BTQ 125-40;
Propulsion system: Single propeller;
Ø Tunnel: 125 mm;
Voltage: 12 V;
Motor power: 2.2 kW;
Thrust: 40 Kgf;
Boat length*: 7-10 m;
Weight: 10.9 kg;
Dimensions: A= 262 mm, B= 125 mm, C= 84 mm.

Push button remote control
TCD 1022 control panel has been designed to control the stern and bow thrusters. It allows to control a single bow thruster. Simple and intuitive user interface. Universal power supply (from 8 to 30 Vdc). Possibility of connection several TCD commands in parallel. Easy to install by means of 2-wire connector (optional extensions). Automatic priority system. Automatic disablement. Protection against reverse polarity, short circuit output, prolonged activity of motor and interruption of thruster control wiring.
Technical data:
- Model: TCD 1022;
- Curent capacity of bow thruster commands: 4A max;
- Power voltage (1): da 8 a 31 Vdc;
- Quiescent current absorption (2): 10 mA;
- Working temperature: from -20 to +70 °C;
- Protection degree (3): IP 66;
- Dimensions including frame: 78 mm x 78 mm x 22 mm;
- Diameter in mm (inches): 61 (2 13/64);
- Weight: 80 g.
(1)  With power supply voltage less than 8 Vdc, the control panel can reset.
(2)  Typical value with control panel disabled.
(3)  Excluding the back of the control panel (IP20).

Extension for TCD/TMS/TSC commands
The Quick TCDEX is a control extension cable used on the QUICK BTQ bow thruster series to connect the bow or stern thruster system to the TCD remote panel control system. 6mt in length. Model TCDEX06.

Fibreglass Tunnel for bow thruster
Fibreglass tunnel perfectly suited to fit electric or hydraulic Quick thrusters. Ø 125 mm. Fibreglass thickness 5mm (3-16 inch). Length 1000 mm. Model TNL125F100.

Bow thruster fuse 150A CNL DIN
The fuse is an essential item that is needed for the bow thruster installation to protect the motor from over current.

Fuse holder for CNL/CNN DIN - 300A fuses
