Quick KBTQ 185-55 K1 12/24V 3000W 55kgf Thruster Kit with Joystick Control TNL1000mm

Please note: this item is made to order and will take about 20 business days to be prepared and shipped.

Quick KBTQ 185-55 K1 12/24V 3000W 55kgf Thruster Kit with Joystick Control TNL1000mm

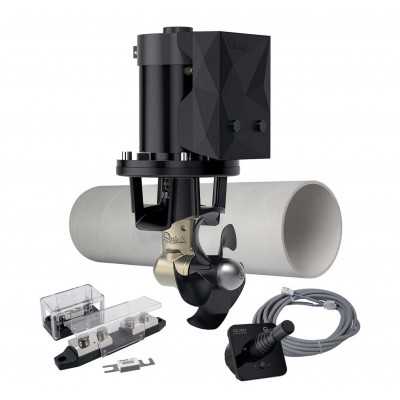

The Quick KBTQ 185-55 K1 complete kit provides everything needed for a practical and reliable bow thruster installation.
It includes the Quick KBTQ 185-55 K1 DC thruster 12V – 3000W – 55 kgf thrust, a TCD2042 Joystick propeller control, a fiberglass tunnel Ø185 mm, length 1000 mm, a 12 m TCD/TMS/TSC control extension cable, plus fuse and fuse holder.
A compact, high-performance, and durable solution, ideal for small to medium-sized boats, designed to ensure maximum precision and safety during maneuvers.

Quick BTQ 185-55 K1 DC Thruster 12/24V 3000W 55kgf

The Quick BTQ 185-55 thruster is a compact, powerful, and reliable solution for small to medium-sized boats.
Designed to ensure safe and precise maneuvering even in tight spaces, it is built with high-quality materials that guarantee strength, efficiency, and long-lasting performance. An ideal device to handle even the most demanding marine conditions with confidence.
Key Features
Single propeller in high-strength composite material.
Recommended for boats from 8 to 11 m (26 – 36 ft).
Bronze gearbox with hardened and ground bevel gears for maximum efficiency.
Standard zinc anode, independent from the gearbox and easily replaceable.
Quick elastic coupling: optimizes alignment between motor and gearbox, reduces vibrations, and protects the system.
Performance & Reliability
Gearbox designed to ensure the same performance of the propeller in both directions.
Minimal maintenance: high-strength components ensure lifetime oil seal integrity.
Hydrodynamic bronze leg profile designed to minimize turbulence and increase efficiency.
4-blade composite propeller, secured with stainless steel self-locking nuts: maximum thrust with reduced power consumption.
Electrical connections equipped with quick, safe, and practical connectors.
Motor & Safety
Motor built with next-generation materials to deliver consistent performance even under demanding conditions.
Overheating protection ensured by an integrated microprocessor.
Support flange in hard-anodized aluminum for superior corrosion resistance and long service life.
Technical data:
Model: BTQ 185-55;
Propeller type: Single propeller;
Tunnel diameter: 185 mm;
Voltage: 12V or 24V;
Motor power: 3 kW;
Thrust: 55 kgf;
Boat length*: 8-11 m (26-36 ft);
Weight: 12V - 16.7 kg, 24V - 16.9 kg;
Dimensions: 12V: A - 292 mm, B - 185 mm, C - 123 mm; 24V: A - 278 mm, B - 185 mm, C - 123 mm.
(*) WARNING: This figure may vary depending on the type of boat.

Joystick Remote control
TCD 2042 Control panels have been designed to control the stern and bow thrusters. For operating the BTQ bow-thruster through a joystick. Simple and intuitive user interface. Universal power supply (from 8 to 30 Vdc). Can work in a wide range of ambient temperatures. Possibility of connecting several TCD controls in parallel. Easy to install by means of 2-wire connector (optional extensions). Automatic priority system. Automatic disablement. Protection against reverse polarity, short circuit output, prolonged activity of motor and interruption of thruster controls wiring.
Technical data:
- Model: TCD 2042;
- Current capacity of thruster commands: 4A max;
- Supply voltage (1): da 8 a 31 Vdc;
- Quiescent Current absorption (2): 10 mA;
- Operating temperature: from -20 to +70 °C;
- Protection rating (3): IP 66;
- Dimensions including frame: 78 mm x 78 mm x 113 mm (3" 5/64 x 3" 5/64 x 4" 11/32);
- Diameter in mm (pollici): 61 (2 13/64);
- Weight: 0.31 lb / 140 g.
(1) With power supply voltage less than 8 Vdc the control panel can reset.
(2) Typical value with control panel disabled.
(3) Excluding the back of the control panel (IP20).

Extension for commands TCD/TMS/TSC
The Quick TCDEX is a control extension cable used on the Quick BTQ bow thruster series to connect the bow or stern thrusters system to the TCD remote panel control system. Length 12 meres. Model TCDEX12.

Fibreglass tunnel for BTQ 185-55 bow thruster
Fiberglass tunnel perfectly suited to fit electric or hydraulic Quick thrusters. Ø185 mm. Length 1000 mm. Thickness 5.5 mm (7/32 inch). Model TNL185F100.

Thruster fuse 500A CNL DIN
The fuse is an essential item that is needed for the bow thruster installation to protect the motor from over current.

Fuse holder for fuses CNL/CNN DIN - 600A
