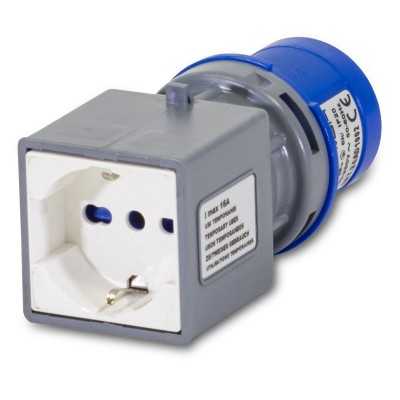

Civil-industrial adapter CEE plug 2P+T 16A Universal socket P40 2P+T 16A
System adapter from industrial (IEC 60 309) to civil Civil-industrial adapter CEE plug 2P+T 16A Universal socket P40 2P+T 16A. Low Voltage Directive (LVD) 2014/35/EU. RoHS Directive 2 - 2011/65/EC.
Features:
Plug: Industrial type IEC 60 309, 2P+T 16A 250V
Socket(s): 1 civil P40 “universal”, 2P+T 16A 250V
Current: 16A
Voltage: 200-250V
Earth contact position: h 6
Protection degree: IP 20
Impact resistance: IK 8
Dimensional stability: -25 /+70°C
Glow wire test: case +650°C / live parts casing +850°C
Type material: Case in thermoplastic material / live parts casing in polycarbonate
Dimensions: 115x56x56mm
Weight: 0.15 Kg
APPLIED STANDARDS: CEI EN 60309-1, CEI EN 60309-2, CEI EN 50250/A1, CEI 23-50 + V1 + V2 + V3 + V4.
