Quick KBTQ 140-40 K2 12V 2200W 40kgf Thruster Kit with Push Button Control NOTNL

Please note: this item is made to order and will take about 20 business days to be prepared and shipped.

Quick KBTQ 140-40 K2 12V 2200W 40kgf Thruster Kit with Push Button Control NOTNL

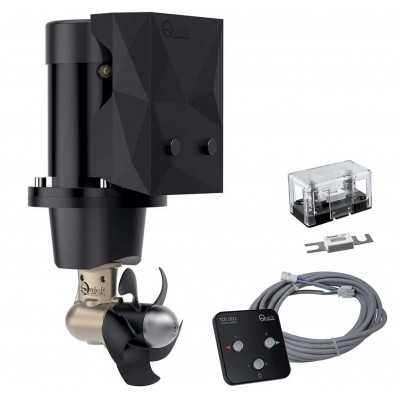

The Quick KBTQ 140-40 K2 complete kit provides everything needed for a practical and reliable bow thruster installation.
It includes the Quick KBTQ 140-40 K2 DC thruster 12V – 2200W – 40 kgf thrust, a TCD2022 push button propeller control, a 6 m TCD/TMS/TSC control extension cable, plus fuse and fuse holder. The propeller tunnel is not included and must be purchased separately.
A compact, high-performance, and durable solution, ideal for small to medium-sized boats, designed to ensure maximum precision and safety during maneuvers.

Quick BTQ 140-40 DC Thruster 12V 2200W 40kgf

The Quick BTQ 140-40 thruster is a compact, powerful, and reliable solution for small to medium-sized boats.
Designed to ensure safe and precise maneuvering even in tight spaces, it is built with high-quality materials that guarantee strength, efficiency, and long-lasting performance. An ideal device to handle even the most demanding marine conditions with confidence.
Key Features
Single propeller in high-strength composite material.
Recommended for boats from 7 to 10 m (23 – 33 ft).
Bronze gearbox with hardened and ground bevel gears for maximum efficiency.
Standard zinc anode, independent from the gearbox and easily replaceable.
Quick elastic coupling: optimizes alignment between motor and gearbox, reduces vibrations, and protects the system.
Performance & Reliability
Gearbox designed to ensure the same performance of the propeller in both directions.
Minimal maintenance: high-strength components ensure lifetime oil seal integrity.
Hydrodynamic bronze leg profile designed to minimize turbulence and increase efficiency.
4-blade composite propeller, secured with stainless steel self-locking nuts: maximum thrust with reduced power consumption.
Electrical connections equipped with quick, safe, and practical connectors.
Motor & Safety
Motor built with next-generation materials to deliver consistent performance even under demanding conditions.
Overheating protection ensured by an integrated microprocessor.
Support flange in hard-anodized aluminum for superior corrosion resistance and long service life.
Technical data:
Model: BTQ 140-40;
Propulsion system: Single propeller;
Ø Tunnel: 140 mm;
Voltage: 12 V;
Motor power: 2.2 kW;
Thrust: 40 Kgf;
Boat length*: 7-10 m;
Weight: 12.2 kg;
Dimensions: A= 268 mm, B= 140 mm, C= 108 mm.

Push-buttons Remote control
TCD 2022 Control panel have been designed to control the stern and bow thrusters. For operating the BTQ bow-thruster through push-buttons. Simple and intuitive user interface. Universal power supply (from 8 to 30 Vdc). Can work in a wide range of ambient temperatures. Possibility of connecting several TCD controls in parallel. Easy to install by means of 2-wire connector (optional extensions). Automatic priority system. Automatic disablement. Protection against reverse polarity, short circuit output, prolonged activity of motor and interruption of thruster controls wiring.
Technical data:
- Model: TCD 2022;
- Current capacity of thruster commands: 4A max;
- Supply voltage (1): da 8 a 31 Vdc;
- Quiescent Current absorption (2): 10 mA;
- Operating temperature: from -20 to +70 °C;
- Protection rating (3): IP 66;
- Dimensions including frame: 78 mm x 78 mm x 22 mm (3" 5/64 x 3" 5/64 x  55/64");
- Diameter in mm (inches): 61 (2 13/64);
- Weight: 0,17 lb / 80 g.
(1) With power supply voltage less than 8 Vdc the control panel can reset.
(2) Typical value with control panel disabled.
(3) Excluding the back of the control panel (IP20).

Extension for commands TCD/TMS/TSC
The Quick TCDEX is a control extension cable used on the Quick BTQ bow thruster series to connect the bow or stern thrusters system to the TCD remote panel control system. Length 6 meters. Model TCDEX06.

Bow thruster fuse 250A CNL DIN
The fuse is an essential item that is needed for the bow thruster installation to protect the motor from over current.

Fuse holder for fuses CNL/CNN DIN - 600A
