150W 12V CPC Flexible Solar Panel 128x60cm N150130150030
150W 12V high-performance CPC flexible solar panel with microcrystalline cells, flexible up to a curvature of 30%, 1280x600x2mm, 3.1kg.
Visit us in our shop
WE ARE AT YOUR DISPOSAL AT OUR POINT OF SALE
Not just online! Come and visit us also in the shop!
In our store you will find a wide selection of selected items and you will be assisted by our specialized staff with over a decade of experience in the nautical sector.
Everything for the boat ... deck equipment, anchoring and mooring, hydraulic and electrical systems, photovoltaics, stainless steel hardware, antifouling and paints, engine spare parts, on-board safety, sailing accessories, nautical instruments, GPS, depth sounders and much more!
We are in San Giorgio di Nogaro in the province of Udine, an important basin, located in the Bassa Friulana, bathed by the Corno river ... a few km from well-known destinations such as Lignano, Grado, Trieste etc.
Nautimarket Europe s.r.l., Via Marittima 17, 33058 San Giorgio di Nogaro (UD) Italy
(modificale nel modulo Rassicurazioni cliente)
(modificale nel modulo Rassicurazioni cliente)
(modificale nel modulo Rassicurazioni cliente)

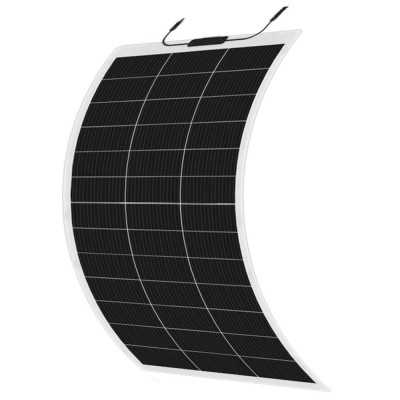

150W 12V CPC Flexible Monocrystalline Solar Panel
High-performance 150W CPC flexible solar module with microcrystalline cells. Manufactured with high performance monocrystalline solar cells. Flexible up to a curvature of 30%. About 5 times lighter than conventional modules. High quality CPC surface. The CPC material used on the surface has good weather resistance and high light transmittance, and its performance is better than that of ETFE material. Our flexible module adopts maximum conversion up to ≥22.5% efficiency and an internal blocking diode that prevents reverse current consumption at night.
It can be mounted on a roof of a boat, yacht, camping, caravans, tent or any other uneven surface. Extremely thin and light: weighs only 3.1 kg and is just 2 mm thick.
Technical data:
- Model: SZ-150-MC;
- Power: 150W;
- Cell type: Monocrystalline 182x91-13x3;
- Module performance: ≥23.5 %;
- Maximum Power Voltage (Vmp): 22.62 V;
- Maximum Power Current (Imp): 6.64 A;
- Open-circuit Voltage (Voc): 26.52 V;
- Short-circuit Current (Isc): 7.03 A;
- Maximum system voltage: 200 V;
- Output tolerance: 0±3 %;
- Cable: 900 mm/2.5 mmq;
- Connector type: MC4/MC4 compatible;
- Model structure: CPC, EVA, backsheet;
- Junction box classified: ≥IP67;
- Working temperature: -20°C ~ +65°C;
- Dimensions: 1280x600x2 mm;
- Weight: 3.1 kg.
IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
