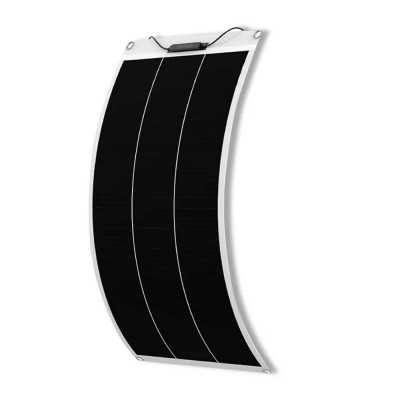

115W 12V ETFE Flexible Mono PERC Solar Panel 930x670x3mm
The 12V ETFE Flexible Mono PERC solar panel with 115 Wp power will perfectly meet your expectations. Suitable for small nomadic installations, such as campers, boats or isolated sites. This panel has high efficiency and maximized production thanks to its monocrystalline cells, it will be able to provide you with an average production of 600Wh per day.
This solar panel has been produced following a strictly controlled process, which guarantees exceptional performance even in low light conditions.
With a low weight it can be transported and installed anywhere.
Its junction box located at the front, 90cm long cables and waterproof MC4 connectors will allow you to make installation and connection greatly simplified and suitable for outdoor use. When it comes to where to install it on the roof of your RV, there are no limits. You can stick it anywhere you want.
Thanks to the front-mounted junction box, the modules can be glued to almost any surface. Thanks to the bypass diodes integrated into the junction box, the module can continue to produce electricity even in shade or low light. Installation is very simple: with a special adhesive (Sikaflex® 522 CARAVAN for example), the modules are glued quickly and easily.
Another advantage is the modules' low weight and aerodynamic shape, which means that wind resistance is much lower than with normal solar panels.
Technical data:
- Model: 115W-ETFE;
- Module type: flexible 12V;
- Cable length: 90 cm;
- Power Pmax: 115 W;
- Isc: 6.34 A;
- Uoc: 23.7 V;
- Impp: 5.81 A;
- Vmp: 19.8 V;
- Measurement tolerances: 0-+3%;
- Connector: MC4;
- Maximum system voltage (Usys): 50 V;
- Allowed temperature of the modules with maximum sunshine: from -40°C to + 85°C;
- Dimensions (width x length x depth): 930 x 670 x 3 mm;
- Weight: 3.8 kg;
- Warranty: 2 years.
