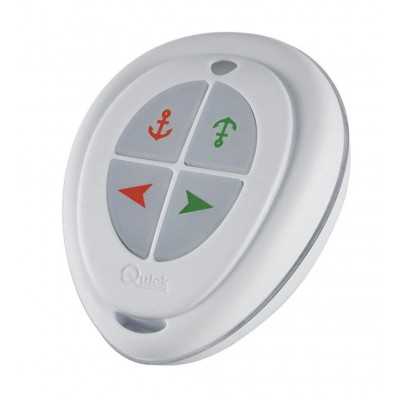

Quick RRC PW4+ 869MHz 4-channel Thruster Pocket Transmitter
The RRC Thruster Pocket Transmitter is a device, combined with an RRC radio receiver, designed to control Quick thrusters on pleasure boats.
The RRC thruster radio system must be used, as an aid, to a wired control system for Quick thrusters already installed on the boat.
• Microcontroller-operated functions.
• Operation in a wide range of ambient temperatures (from -15°C to + 60°C).
• FSK modulation and 869.8 MHz frequency (not compatible with 434 MHz frequency)
• Transmission feedback and battery charge status LED indicator.
• Floating.
CORRESPONDENCE BETWEEN PRESSED KEY:
Anchor ascent/Anchor descent
Bow Left/Bow right
Pressing the two keys simultaneously cancels the transmission.
A 2 second transmission delay is introduced when passing from the Bow Left key to the Bow right key and vice versa.
Enabling: The RRC Thruster pocket transmitter is enabled by keeping both (Anchor ascent and Anchor descent) keys pressed.
Technical data:
- Model: PW4+;
- Complies with Directive: 2014/53/EU (RED);
- Carrier frequency: 869.8 Mhz;
- Muodulation: FSK;
- Number of keys/buttons: 4;
- Power supply: CR2450 3V lithium battery;
- Absorption during transmission: 13 mA;
- Service Temperature: -15° C +60° C;
- Dimensions: 60x47x23 mm;
- Weight: 35 g.
