Fothermo Photovoltaic Water Boiler 80L 550W 15.5A Hybrid Water Heater OF017890
Hybrid photovoltaic boiler for hot water 80 litres complete with MC4 connections for direct connection to a solar module up to 600Wp and 230V socket for support power supply from the electrical grid, max heating power 550W, max current 15.5A, 470x480x900mm, 25kg.
Visit us in our shop
WE ARE AT YOUR DISPOSAL AT OUR POINT OF SALE
Not just online! Come and visit us also in the shop!
In our store you will find a wide selection of selected items and you will be assisted by our specialized staff with over a decade of experience in the nautical sector.
Everything for the boat ... deck equipment, anchoring and mooring, hydraulic and electrical systems, photovoltaics, stainless steel hardware, antifouling and paints, engine spare parts, on-board safety, sailing accessories, nautical instruments, GPS, depth sounders and much more!
We are in San Giorgio di Nogaro in the province of Udine, an important basin, located in the Bassa Friulana, bathed by the Corno river ... a few km from well-known destinations such as Lignano, Grado, Trieste etc.
Nautimarket Europe s.r.l., Via Marittima 17, 33058 San Giorgio di Nogaro (UD) Italy
(modificale nel modulo Rassicurazioni cliente)
(modificale nel modulo Rassicurazioni cliente)
(modificale nel modulo Rassicurazioni cliente)

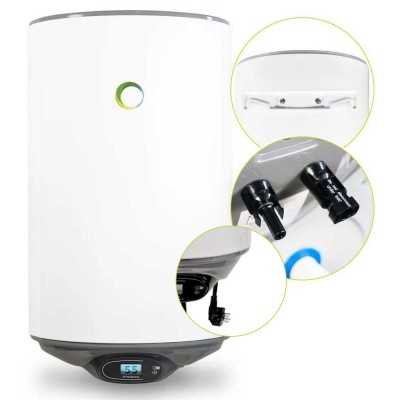

Fothermo Photovoltaic Water Boiler 80L 550W 15.5A Hybrid Water Heater
With the 80L hybrid water heater from Fothermo, you can produce your hot water using sustainable and cost-effective solar power. The solar panels can be connected in just a few seconds via plug and play and provide you with a reliable hot water supply. In contrast to the other 80-liter Fothermo off-grid boiler, the hybrid version can be reheated via the 230V power grid. Due to the low voltage level of less than 50V, no electrician is required for installation.
• 80 liter photovoltaic hybrid boiler
• Hot water for the sink, shower or kitchen
• No connection to the power grid required
• Innovative MPP tracker
• Complete system with MC4 PV connections
• No specialist required for installation
• Digital temperature display
• 1/2" water connection on the water heater
• Plug and play
The boilers work with an output of up to 1500W. If desired, there is also the option of reheating via the existing heating system. Installation is straightforward, similar to conventional storage cylinders. A vacuum valve and non-return valve are also included to ensure maximum safety.
The Fothermo Hybrid Boiler offers an intelligent solution in the event that the solar energy is not sufficient to heat the water for a longer period of time. a minimum temperature, e.g. 35°C, can be set via the 230 V backup heater with an adjustable rotary control. If the water temperature falls below this value, the boiler is automatically reheated with 1,500 W electricity from the mains until the minimum temperature is reached again. The boiler has a maximum water temperature of 65°C and can provide around 72 liters of 34°C hot water for showers (with a 30-liter boiler) or 180 liters for the 80-liter boiler when fully heated.
The innovative MPP tracker increases the yield of your photovoltaic system by up to 50% by always ensuring the optimum operating point of the connected PV modules.
Photovoltaic connection
- Max. photovoltaic heat output: 550W
- Max. photovoltaic current consumption: 15.5A
- Max. Water temperature: 65°C
- Integrated MPP tracker
- Recommended photovoltaic output: 300 - 600Wp
- Max. connectable photovoltaic power: 2000Wp
- Max. Open circuit voltage: 42.4V
- Connector plug: MC4
Technical data
- MPN: PVB-80-AC
- Volume: 77 liters
- Nominal pressure: 0.7MPa
- max. heat output: 550W
- max. current: 15.5A
- Protection class: IP 24
- Dimensions: 470 x 480 x 900 mm
- Weight: 25 kg
Attention: The open-circuit voltage of the solar modules must not exceed 42.4V.
When using several modules, they must be connected in parallel, not in series!
IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
