12V 200W Solar Kit with 20A MPPT Charger + Cable Kit N151030200260

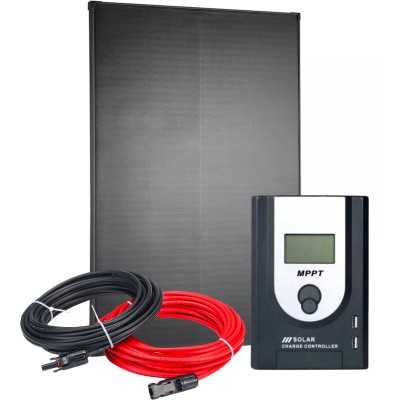

12V 200W Solar Kit with 20A MPPT Charger + Cable Kit

12V 200W Photovoltaic Kit complete with 200W photovoltaic module, 20A 12/24V MPPT Solar Charge Controller with display and 2 USB outputs and Solar Cable Kit 2x5m-4mmq with F/M MC4 connectors for stand-alone PV sy-stems, remote houses, camper vans, boats, industrial applications, lighting systems, road signs, TVCC systems and much more.
The kit is made by:
1 - 200W 24V Monocrystalline Photovoltaic Module 36M Solar Panel #N150030050182;
1 - 20A 12/24V MPPT Solar Charge Controller with display and 2 USB outputs #N150230550451;
1 - Solar Cable Kit 2x5m-4mmq with F/M MC4 connectors #N151230750280.

200W 24V Monocrystalline Photovoltaic Module 36M Solar Panel
Designed for the rural electrification, data survey, telecommunication and special applications. Thanks to its versatility, the panel is very popular and used both in developing countries as well as the European market. Furthermore every single cell and module produced have been tested and checked several times throughout the manufacturing process. The interconnections between panels are easy, practical and optimized for every configuration and voltage. Robust construction and heavy duty anodized aluminium frame design makes this module suitable, safe, simple and fast to be installed in many situations.
Prevent the loss of electricity: used on the roof of the car, charge the car battery at any time. Can prevent the car battery from losing electricity, and solve the situation that the car cannot be fired due to the battery loss caused by the long-term parking of the vehicle.
Elettrodomestici di bordo: quando si utilizzano gli elettrodomestici di bordo, la potenza originale della batteria dell'auto non si perde (audio per auto, navigatore, registratore di guida, aspiratore, ventilatore per auto, frigorifero per auto, cellulare, ecc.).

Features:
- High module conversion efficiency.
- The efficiency of high-quality and high-efficiency monocrystalline silicon wafers can reach 22%.
- Excellent performances even during low solar radiation (cloudiness, morning or evening).
- Solar-grade tempered prismatic glass.
- High-quality cells and partial-cell design lower series resistance and reduce power degradation.
- Strict and continuous quality controls during all the production phases up to shipment.
- Anti-corrosion EVA effectively protects the battery panel.
- Strong and anti-wind and snow, unique technology to avoid freezing of water in the frame and deformation.
- Lightweight and flexible features can make it seamlessly integrated into your vehicle.
- The integrated bypass-diodes allow the panel to work when partially shaded.
- IP67 rated junction box, reliable cables and standard MC4 connectors improve the stability.

Technical data:
- Model: SZ-200-36M;
- Peak power: 200W;
- Cell type: Monocrystalline;
- Cell Efficiency: 22%;
- Cell configuration: 36 monocrystalline silicon cells;
- Vmp: 24.39 V;
- Imp: 8.21 A;
- Voc: 28.99 V;
- Isc: 8.7 A;
- Maximum system voltage: 500V;
- Output tolerance: ±3%;
- Cable: 700 mm / 2.5 mm²;
- Connector type: MC4 / MC4 compatible;
- Model structure: Aluminum frame, glass, EVA, backsheet;
- Junction box classified ≥IP67;
- Working temperature: -40°C ~ +80°C;
- Size: 1480x670x30 mm;
- Weight: 11.6 kg.
Note:
Pv module provided with cable MC4 connectors. If the distance between the PV module and charge controller is less than 10 mt, we recommend using 4 mm² cable; If the distance between the PV module and charge controller is more than 10 mt, we recommend using 6 mm² cable.

20A 12/24V MPPT Solar Charge Controller with display and 2 USB outputs
This is a 20A charge controller for 12/24V batteries with the research of the maximum MPPT point of the PV module. You can install also PV modules for on grid applications or amorphous silicon type. Simple and intuitive, it is the complete solution for stand-alone PV sy-stems, remote houses, camper vans, boats, industrial applications, lighting systems, road signs, TVCC systems and much more.
This solar charge regulator has a research circuit for maximum PV module power (MPPT): regardless of the battery voltage and its charge status, it makes the PV module work at its maximum power point, maximizing the energy that comes from the module and then loading into the battery.
Technical data:
- Rated Charge current: 20A;
Input
- Max open voltage of solar panel: <75V;
- System rated voltage: 12/24V auto recognized;
- Max Battery voltage: 8V-32V;
- Max input power: 12V (260W), 24V (520W);
Output
- Battery type: User default, sealed, flooded, GEL, LiFePo4, Li(NiCoMn)O2;
- Equalized charging voltage:
  - Maintenance-free lead-acid battery: 14.6V,
  - GEL: No; Lead-acid Flooded battery: 14.8V,
- Absorption charging voltage:
  - Maintenance-free lead-acid battery: 14.4V,
  - GEL: 14.2V; Lead-acid Flooded battery: 14.6V,
- Float charging voltage: Maintenance-free lead-acid battery, GEL, Lead-acid Flooded battery: 13.8V;
- LVR: Maintenance-free lead-acid battery, GEL, Lead-acid Flooded battery: 12.6V;
- Static loss: ≤50mA;
- HVD: Lead acid battery 16V;
- Light control voltage: 5V/10V/15V/20V;
- Temperature compensation coefficient: -4mV/°C/2V (25°C);
- Discharge loop voltage drop: ≤0.2V;
- LCD temperature: -20°C ~ +70°C;
- Operatiing temperature: -20°C ~ +55°C;
- Storage temperature: -30°C ~ +80°C;
- Working humidity: ≤90%, No condensation;
- Protection class: IP30;
- USB outputs: 2 way outputs;
- Grounded type: Positive grounded;
- Terminal wiring: 10 mmq/7AWG;
- Dimensions: 175x120x47 mm;
- Weight: 400g.

Solar Cable Kit 2x5m-4mmq with F/M MC4 connectors
Cable kit made of black 4 mm² 5 meter photovoltaic cable, red 4 mm² 5 meter photovoltaic cable, MC4 female and male connectors. Specifically designed for the creation of quick and safe connections in the field of photovoltaic applications with the most common inverter and junction boxe. They are made with tinned copper contacts and PPO housing. Resistant to mechanical and climatic stress and resistant to UV rays. The cables and connectors are supplied pre-wired.

IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
